đŸ“»Why you shouldn’t solder the shield on a crimp connector

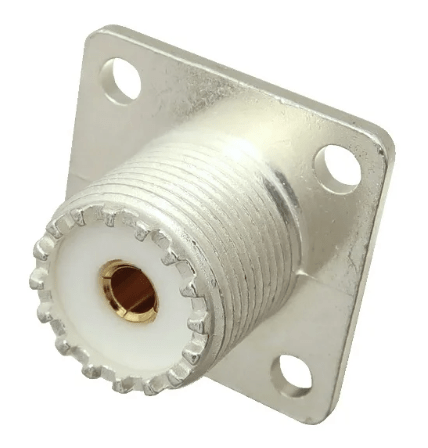

Note: For my 40-meter inverted V portable antenna setup, I wanted to put a female connector on the end of the coax after the ferrite chokes. However, I could only find a crimp style SO-239 or a solder version designed to be mounted on a chassis or box. Because I don’t have a crimper tool and no experience with these connectors, I asked AI about buying the crimp version and then soldering the shield instead of crimping. Two important points from the AI that I hadn’t fully considered are highlighted in blue font below.

Chat history

You said:

Can I solder a SO-239 Crimp Connector?

ChatGPT said:

Short answer: no—not the way it’s designed to be used. But there’s a nuance worth understanding.

🔧 What an SO-239 crimp connector is designed for

An SO-239 crimp connector is meant to be attached using a crimping tool, not solder.

  • The outer shield (braid) is secured by a crimp sleeve/ferrule
  • The center pin is often either:
    • crimped, or
    • soldered (depending on the specific connector)

So the connector is usually part crimp + part solder, but not solder-only.

🧠 Where solder is used

You can solder the center conductor (pin) if the connector is designed for it.

👉 Many “crimp-style” connectors still expect:

  • center pin = soldered OR crimped
  • shield = crimped only

⚠ Why you shouldn’t solder the shield on a crimp connector

Trying to solder the braid instead of crimping causes problems:

  • đŸ”„ Heat can melt the dielectric (especially on RG-58, RG-8X)
  • đŸ§” Solder can wick into the braid, making it stiff and prone to breakage
  • 📡 Can lead to poor impedance and higher SWR
  • ❌ Mechanically weaker than a proper crimp

👍 What you can do instead

If you don’t have a crimp tool, you’ve got better options:

Option 1: Use a solder-type SO-239

These are designed for:

  • soldering center conductor
  • soldering the braid through holes in the body

Option 2: Get a proper crimp tool

For ham work (like your setups with PL-259 / coax builds), this is worth it:

  • More consistent connections
  • Better RF performance
  • Faster once you get the hang of it

🧰 Ham-radio practical advice (based on your projects)

Given your hands-on coax work and troubleshooting:

  • If you’re doing field repairs â†’ solder-style PL-259/SO-239 is fine
  • If you’re building multiple cables â†’ crimp connectors + tool = best long-term
  • For VHF/UHF (2m/70cm) â†’ crimp connectors usually outperform solder ones

đŸ§Ș Quick rule of thumb

  • Crimp connector? → Crimp the shield
  • Solder connector? → Solder both center and shield
  • Center pin? → Follow connector design (crimp OR solder)

If you want, tell me what coax you’re using (RG-8X, RG-58, LMR-400, etc.), and I can recommend the exact connector + tool combo that’ll give you the lowest SWR and longest life 👍
